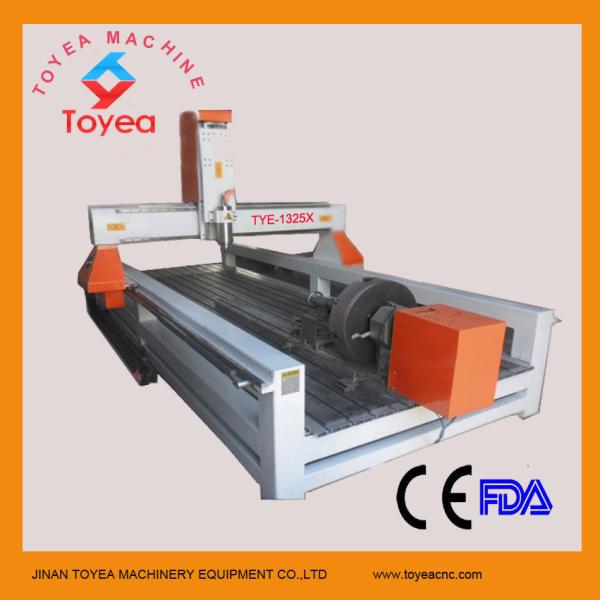

TYE-1325 Styrofoam CNC Router Machine

Place of Origin : China

Brand Name : TYE

Certification : CE

Model Number : TYE-1325X

MOQ : 1 pcs

Packaging Details : free-fumigation wooden case

Delivery Time : 15 working days

Payment Terms : TT in advance,Western union,moneygram

Supply Ability : 300 pcs/month

Contact Now

TYE-1325 Styrofoam CNC Router Machine

Features:

1.Taiwan Hiwin Linear guideway

2.Japan Yaskawa servo motors

3.NK200 control system

4.CE

Styrofoam CNC Router machine Industrial:

This molds is mainly used for the following two industrial fields.

Firstly,molds industrial:It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.

Secondly, musical instrument industry: Engrave 3D large instruments and shaping

Styrofoam CNC Router machine Materials:

Styrofoam,wood,resin,aluminum,non-metal materials,etc

Parameters of Styrofoam CNC Router Machine

TYE-1325 Styrofoam CNC Router Machine
X,Y, Z-Axis Travel	13002500700
Table size	1800*3500mm
Spindle Power	5.5KW water coolen spindle
Machine structure	8mm thick heavy-duty tubular steel frame
Repeatability	+/- 0.02mm
working speed	30m/min
Max. Rapid Travel Speed	45m/min
Drive System X and Y axis	German Slanting Rack Taiwan Hiwin 25 rail linear guideway
Drive system Z axis	Germany imported ballscrew
Standard Table Surface	Milling steel table(T slot)
Working voltage	380V,50Hz/60Hz 3 phrase or 3 phrase optional
Drive system	Yaskawa servo motor
Control system	NK200 (Ncstudio or Syntec system)
Command	G code,u00,mmg
Electric Box	Intergrated computer control cabinet
Gross Weight	3000KG

Styrofoam CNC Router machine details:

Styrofoam CNC Router machine Samples:
